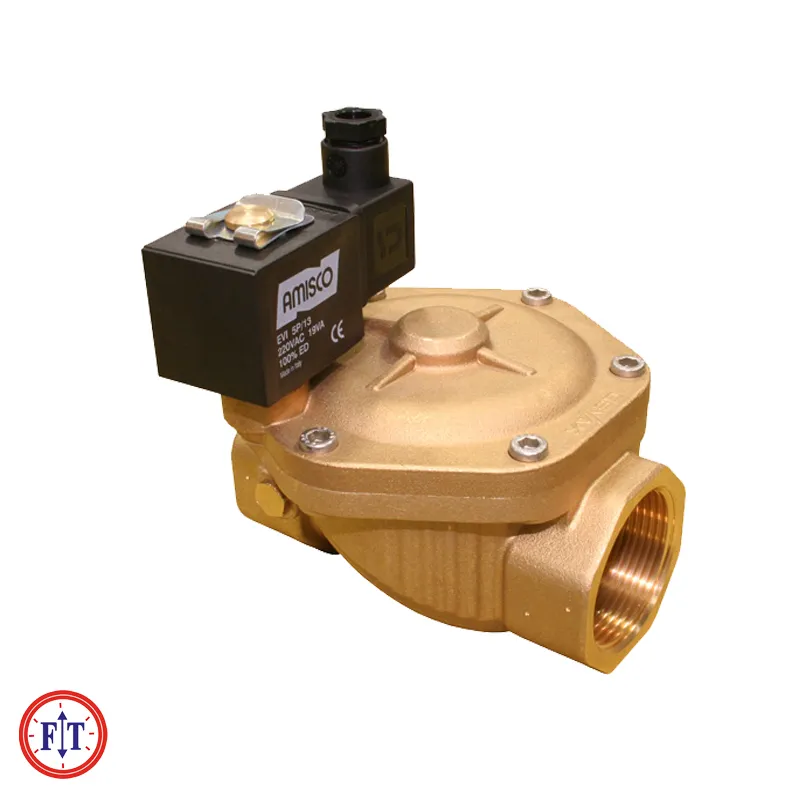

صمام سولينويد للأغراض العامة

REFERANCE: 1901-KBNF016-250-24DC MAIN SERIES: General Purpose FUNCTION: 2/2 Ways POSITION: Normally Closed OPERATION TYPE: Pilot Operating SEAT SEAL MATERIAL: NBR Diaphragm / NBR Seal PORT SIZE: 1” ORIFICE: 25mm Kv: 180.00 l/min Pmin-Pmax (bar): 0,5-16 bar Tmin / Tmax (°C): -10 °C / 80 °C WEIGHT: 1.055 Kg COIL VOLTAGE – TOLERANCE: 12,24,110,220,230V AC/DC
